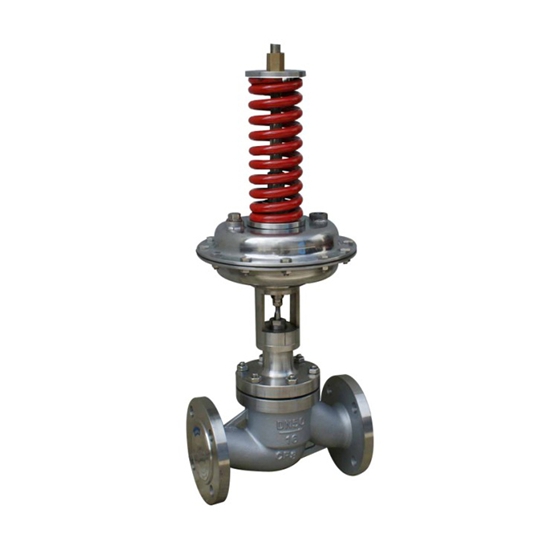

当前位置：首页 >> >>Self-regulating valveZZYP self pressure regulating valve is a kind of without external energy, using controlled the media's own energy when the power source, is introduced to perform film chamber to produce thrust, throttle control element to achieve automatic adjustment. Comprehensive function ZZYP control valve has the measurement, implementation, control. Available in no gas, no electric place. Widely used in petroleum, chemical, power, light industry, printing and dyeing industry in the automatic control system of gas, liquid and various equipment steam medium pressure regulator (for deceleration, pressure regulating valve after the pressure relief, pressure) (for the valve before the pressure adjustment automatic control).
ZZYP self pressure regulating valve technical data and dimensions:
Nominal diameter DN（mm） | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |||
Seat diameter DN（mm） | 10 | 12 | 15 | 20 | ||||||||||
The rated flow coefficient Kv | 1.8 | 2.4 | 4.4 | 4 | 11 | 20 | 30 | 48 | 75 | 120 | 190 | 300 | 480 | 760 |
To allow pressure（MPa） | 2.5 | 2.0 | 1.6 | 1.0 | ||||||||||
Nominal pressure（ MPa） | 1.6 4.0 6.4 | |||||||||||||
The inherent flow characteristics | Quick opening | |||||||||||||
Ensure that transfer the minimum pressure valve work difference P（MPa） | 0.05 | |||||||||||||
Pressure segment range | 15～50 40～80 60～100 80～140 120～80 | |||||||||||||
Working temperature ℃ | Liquid ≤ 140; gas ≤ 80; with the condenser and heat sink ≤ 350 | |||||||||||||
Suitable for medium | Low viscosity liquid, gas, steam | |||||||||||||
Flange size, type | PN10, 16, 40GB9113-88, PN64JB/T7-94; PN10, 16 PN40, 64 convex, concave or according to the flange matching other standard types of user requirements (such as: ANSI, JIS, DIN and other standards) | |||||||||||||
The length of the structure | According to GB12221-89 standard | |||||||||||||
Can be equipped with accessories | Condenser (for medium for steam occasions), such as heat sinks. | |||||||||||||
Actuator signal interface | Internal thread M16 * 1.5 | |||||||||||||
公称通径(DN) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
L | PN16、40 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | |
PN64 | 230 | 230 | 260 | 260 | 300 | 340 | 380 | 430 | 500 | 550 | 650 | ||
B | 233 | 332 | 373 | 522 | 673 | 980 | 1200 | ||||||
H | 压 | 15～140 | 475 | 520 | 540 | 710 | 780 | 840 | 880 | 915 | |||
120～300 | 455 | 500 | 520 | 690 | 760 | 800 | 870 | 880 | |||||
280～500 | 450 | 490 | 510 | 680 | 750 | 790 | 860 | 870 | |||||
480～1000 | 445 | 480 | 670 | 740 | 780 | 850 | 860 | ||||||
600～1500 | 445 | 570 | 600 | 820 | 890 | 950 | 950 | 1000 | |||||
1000～2500 | 445 | 570 | 600 | 820 | 890 | 950 | 950 | 1000 | |||||
A | 压 | 15～140 | φ282 | φ308 | |||||||||
120～300 | φ232 | ||||||||||||
280～1000 | φ196 | φ196 | φ282 | ||||||||||
600～2500 | φ85 | φ96 | |||||||||||
大约重量（Kg） | 26 | 37 | 42 | 72 | 90 | 114 | 130 | 144 | 180 | ||||
导压管接口螺纹 | M16×15 | ||||||||||||
结构图：
